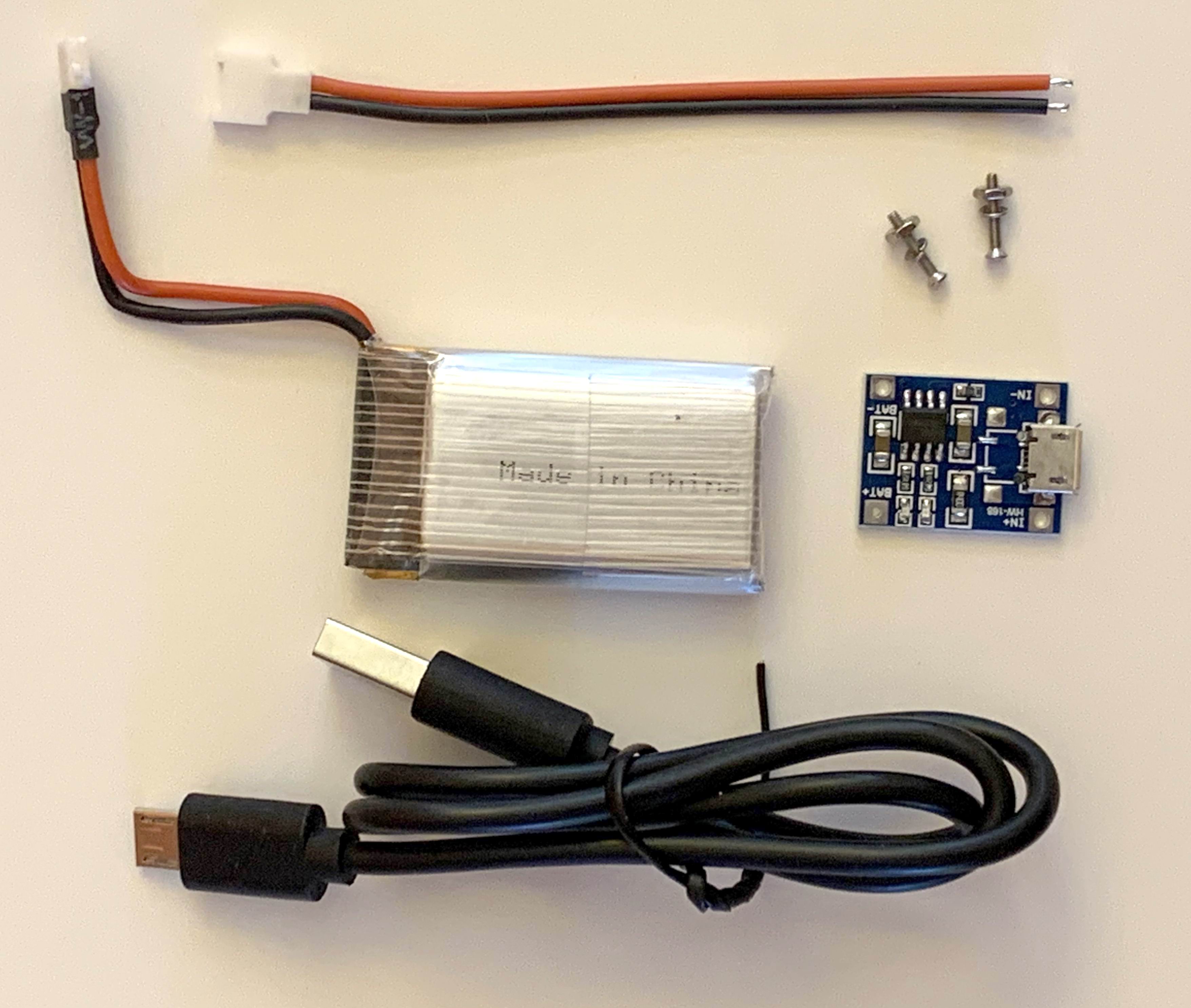

Figure 1
Figure 2
Figure 3
|
SuperProbe Battery Pack 800mAh Li-Ion Kit
As seen on YouTube and commented on many other sites, Paul Carlson designed a very useful non-contact
very high gain electronic probe for investigating just about any kind of electrical signal from audio to RF.
The SuperProbe & Amp can be powered from any supply of 3.5 to 5.5VDC.
This Kit uses 3.7V Li-Ion
battery (typical 3.7-4.2VDC) to power the probe & amp and includes a TP4056 charger module, battery connector
cable, micro-USB charger cable, wire and some screws.
You need to be creative in packaging the probe amp and this power supply in your own housing.
Note that Figure 2 & 3 show typical compact probe, amp and packaging but this kit contains only Figure 1 parts
(plus some wire and shrink tubing).
The black ABS case shown in the pictures is made by Hammond, part #1593LBK 3.6" x 2.6" x1.1". Nothing smaller is really suitable.
SHIPPING NOTE:
We can only ship this kit to USA destinations and only by ground due to the USPS restrictions for Li-Ion batteries.
Anyone interested in building the probe should first review:
Mr Carlson's YouTube video @ https://www.youtube.com/watch?v=uVkJqqZroN0
Yannick99 @ https://www.instructables.com/Carlsons-Super-Probe/
Web search for many other reviews and assembly hints.
The Assembly:
Basic instructions, schematic and a photo of a typical amp housing are included.
|
|
