| Fluke Blue LED Display Replacement Options
|
|

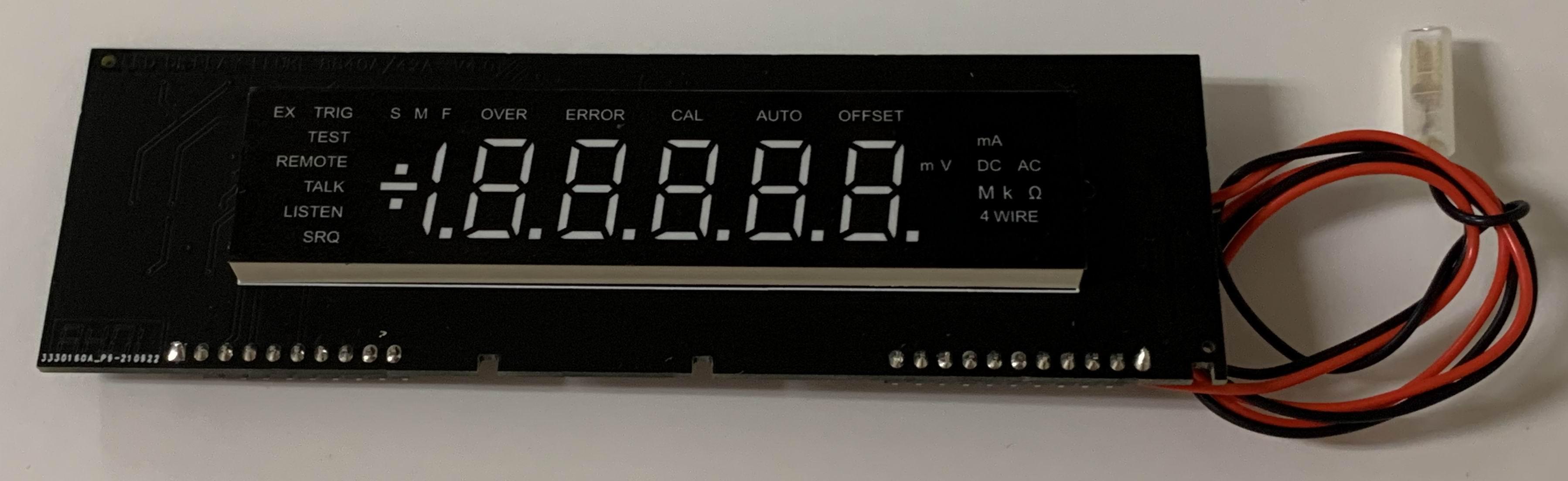

This listing is for ONE prewired LED Display Module only.

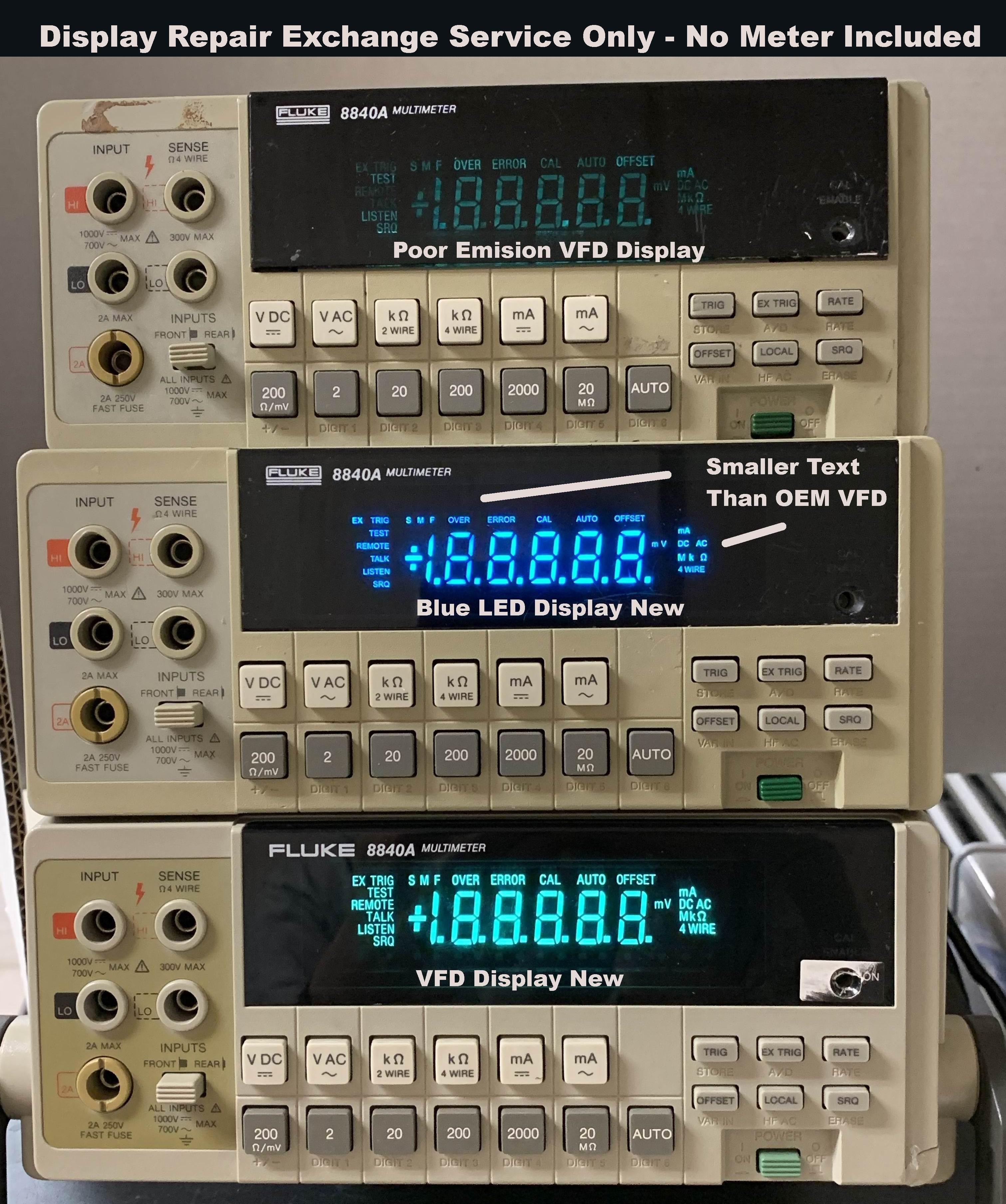

If you have a Fluke 8840A/8840AF or 8842A with a dead or dim VFD display,
this module can directly replace the VFD display. We have pre-attached the display pin connectors, power wiring and power connectors.
(We use Teflon 22G wire as well as crimped and soldered power connectors.)

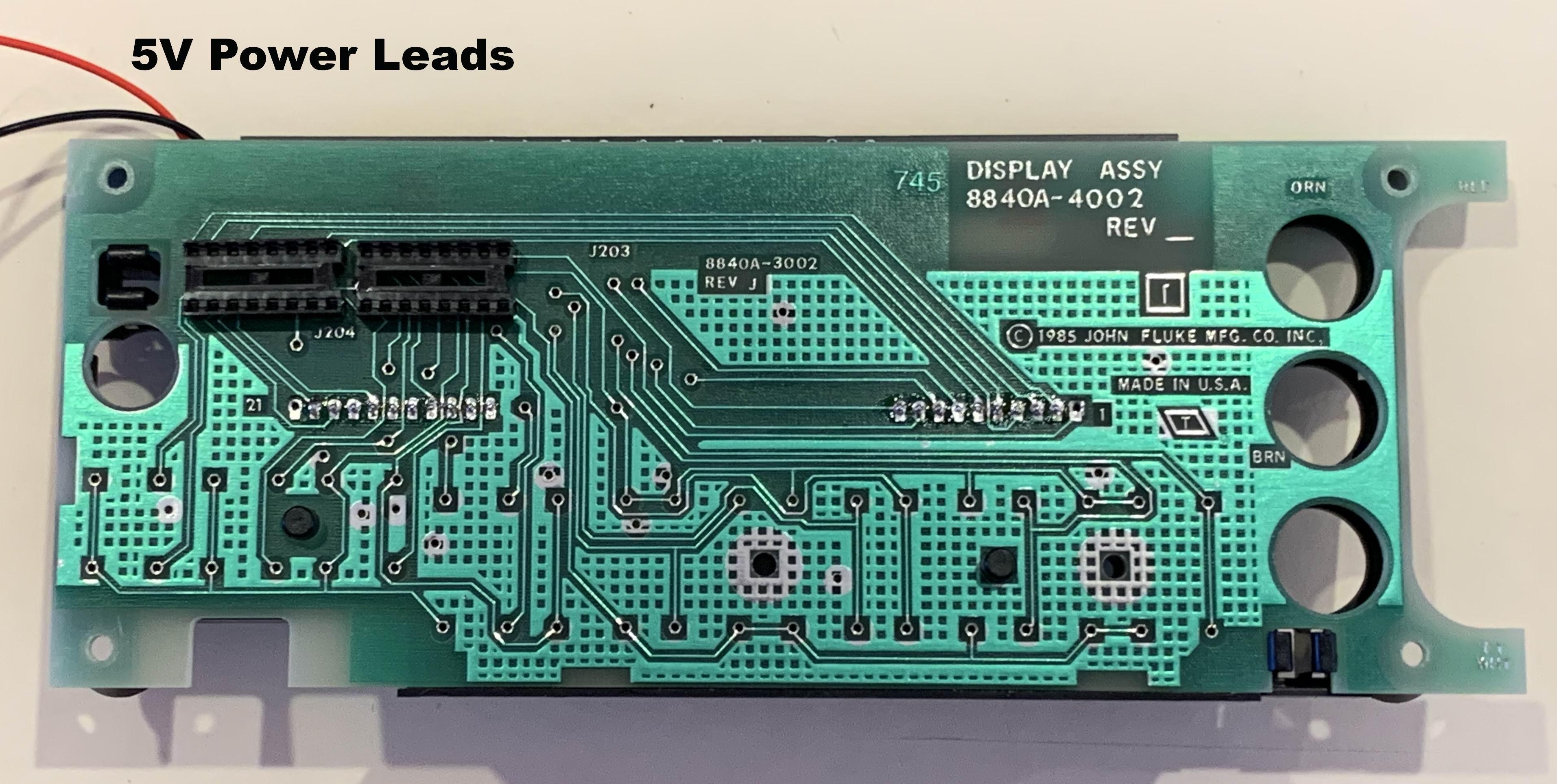

Remove the VFD PCB from your meter, following the Fluke manual instructions. Then remove the old VFD display and replace it with a
blue LED display. Follow Fluke manual for re-assembly of your meter and properly connecting the LED display power leads to existing
terminals on the meter main PCB. We provide instructions for these two supply connections.
As this component requires further assembly by the Buyer, we are unable to offer returns. However, the Buyer has the option of
returning the complete display PCB with new LED display for our possible repair. Buyer pays agreed upon service fee and shipping
costs for display repair.
If you have questions, please ask before ordering.
|
|
($ 71.95) [NO stock] Fluke 884XA-LEDP Blue LED Module Wired
|
|

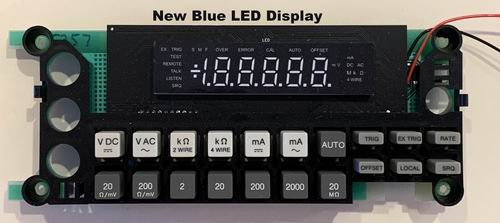

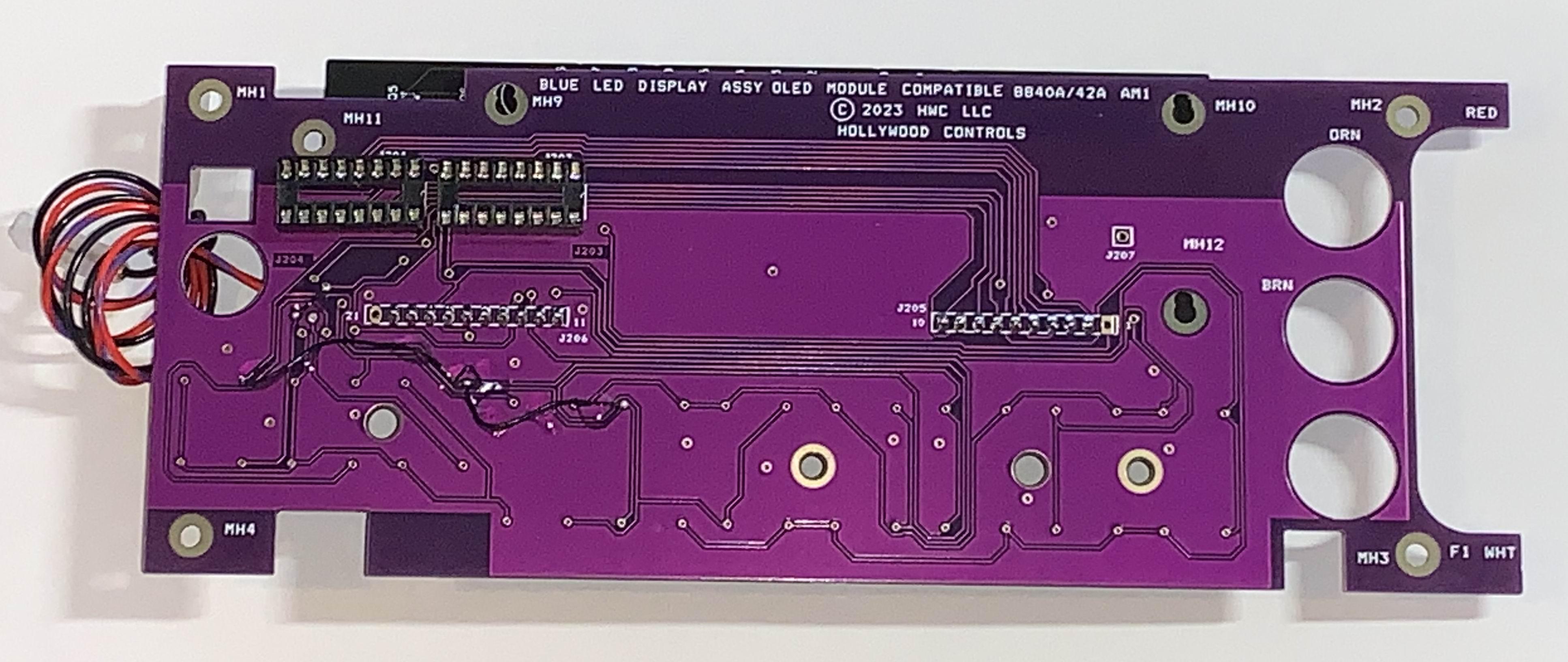

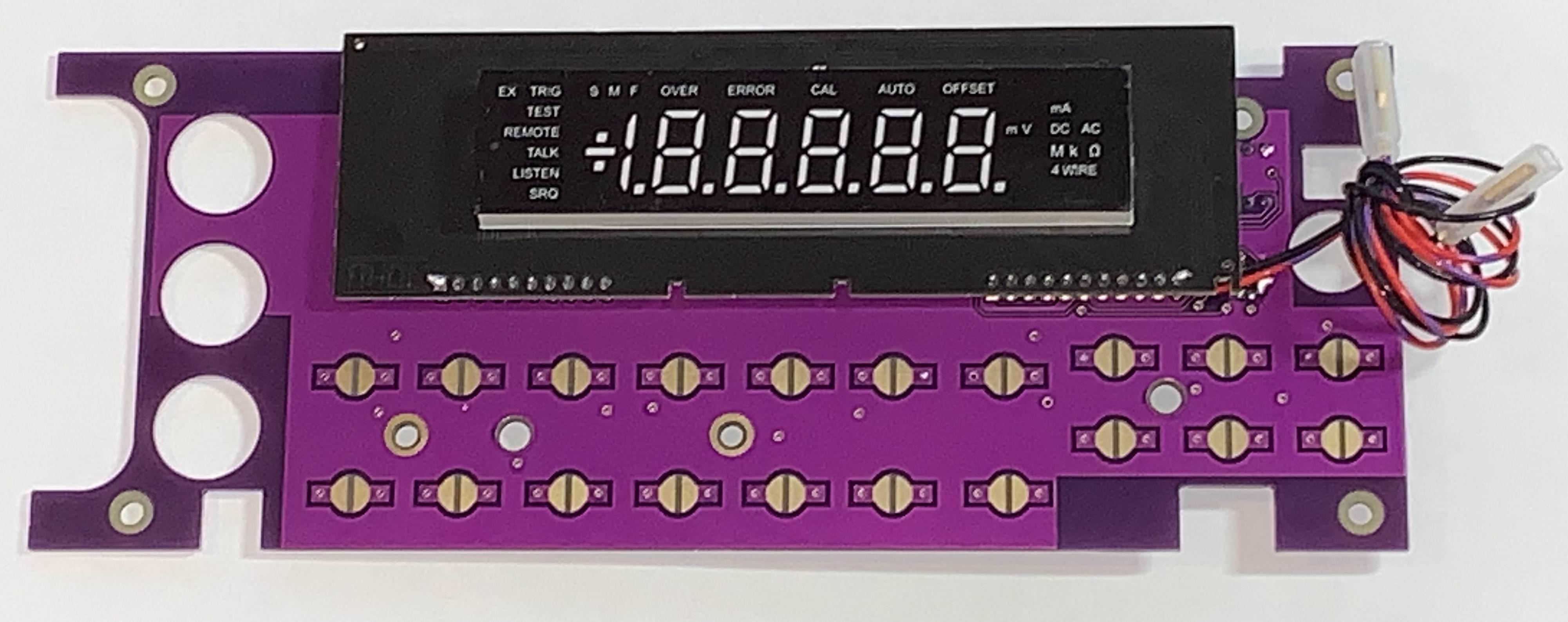

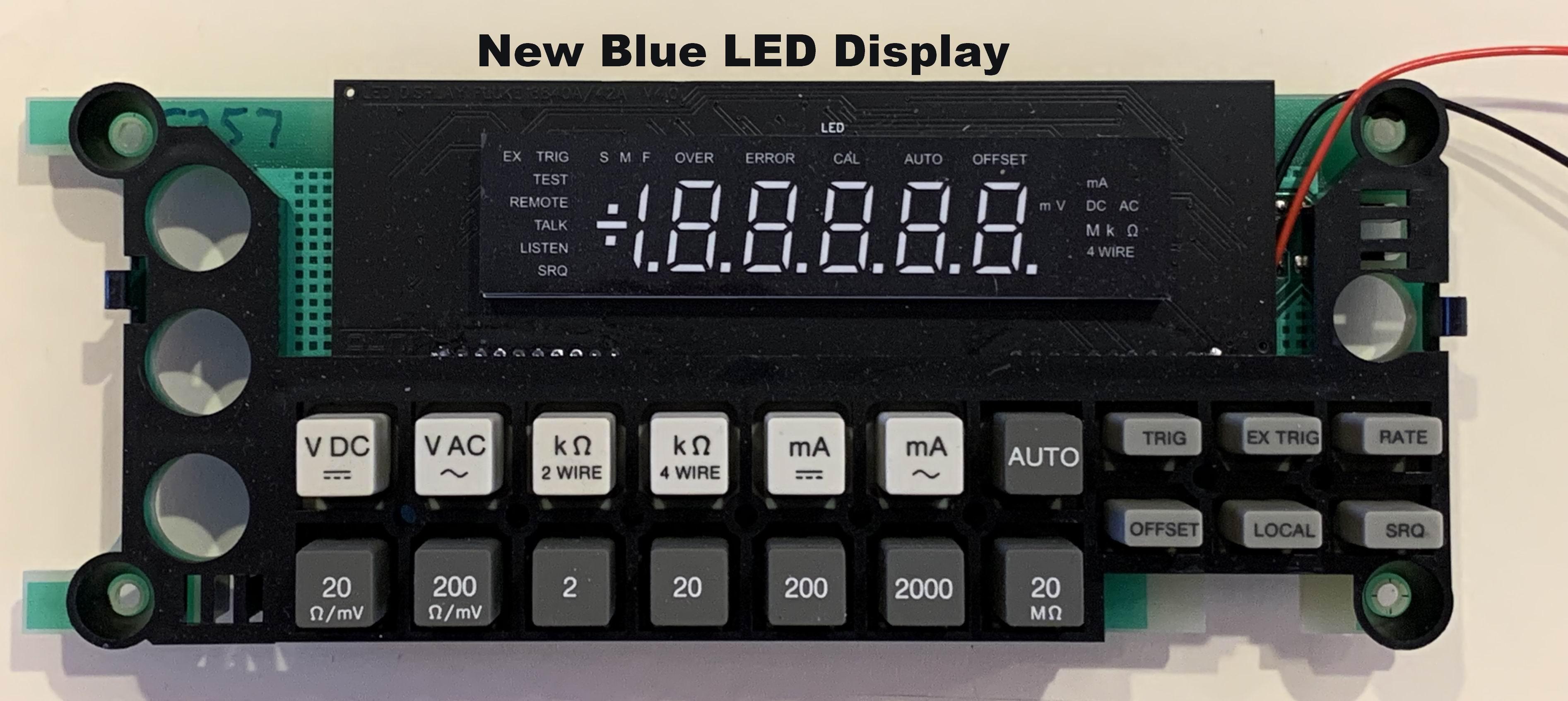

This listing is for a ALL NEW complete display assembly with display PCB (purple solder mask) and Blue LED module ready
for mechanical asembly without de-soldering/soldering.
This assembly is compatible with the Fluke 8840A/8840AF and 8842A (shown in green solder mask).
If you have a Fluke 8840A/8840AF or 8842A with a dead or dim VFD display,
this assembly can directly replace the VFD display. You simply remove the old VFD PCB and replace it with ours,
then connect the 2 power leads.
(We use Teflon 22G wire as well as crimped and soldered power connectors.)
Remove the VFD PCB from your meter, following the Fluke manual instructions. Follow Fluke manual for re-assembly of your meter and properly
connecting the LED display power leads to existing
terminals on the meter main PCB. We provide instructions for these two supply connections.
Our assembly includes a 90-day warranty. If you have problems please contact us. Buyer pays agreed upon service fee and shipping
costs for display repair.
If you have questions, please ask before ordering.
|
|
($ 116.95) [NO stock] Fluke 884XA-LED_ASSY Blue LED & PCB Assembly Wired
|
|

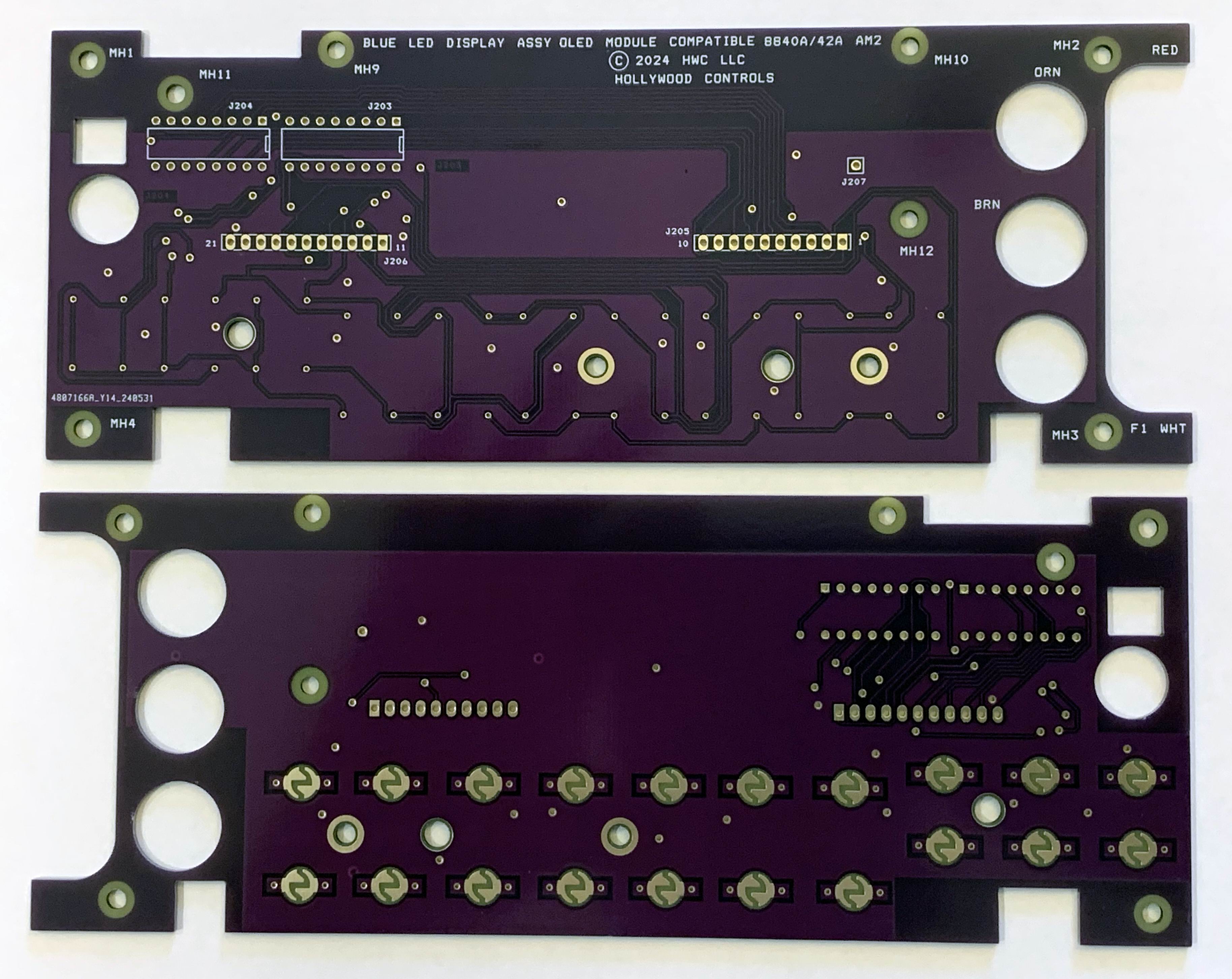

This listing is for the PCB and 2 16-pin unmounted sockets only.
If you have questions, please ask before ordering.
|
|
($ 29.95) Fluke 884XA-LEDPCB
|
